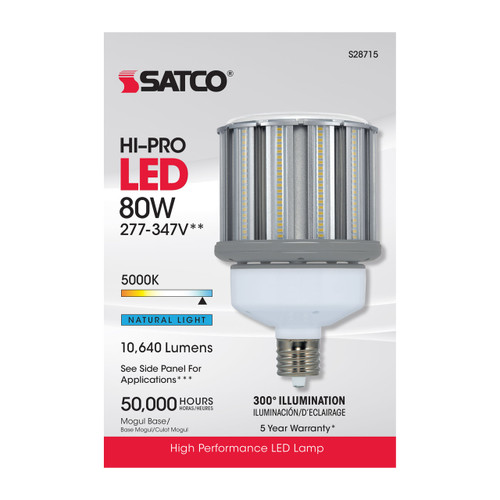

80 Watt LED HID Replacement - 5000K - Mogul extended base - Type B Ballast Bypass -277-347 Volt
| bundle | 1 |
|---|---|
| spec sheet | https://snap2satco.com/specifications/specsheet.php?sku=S28715 |
| INS URL | https://assets.satco.com/media-prod/image/upload/Certs/S28715_Instructions.pdf |
| Collection | Hi-Pro |
| Lighting Type | Lamps |
| Fixture Type | Corncob |
| Tariff Code | 8539.52.0091 |
| Warranty | 5 Years |
| Country of Origin | China |
| CA Web Text | Lawful for Sale |
| Common Purpose | Industrial and Commercial Applications |
| Housing Color | White/Grey |
| FCC Compliant | Yes |
| RoHS Compliant | Yes |
| Certifications | cULus |
| Location Rating | Damp |
| Indoor Outdoor | Indoor/Outdoor |
| IP Rating | IP65 |
| Amps | 0.289-0.231A |
| ANSI Base | EX39 |
| Ballast Bypass Direct | Ballast Bypass |
| Beam Spread | 300° |
| Burning Position | Base Up or Down |
| CCT Selectable | No |
| Color of Light | Natural Light |
| Color Rendering Index (CRI) | 80+ |
| Dimmable | No |
| Fluor Equiv | 100W |
| HID Equiv | 320W |
| Avg Rated Hours | 50000 |
| Incandescent Equiv | 400W |
| Base | Mogul Extended |
| Lamp Filament | LED |
| Shape | Corncob |
| Lamp Ballast Type | Type B |
| Brightness (Lumens) | 10640 |
| Voltage | 277-347 |
| Wattage | 80 |
| Color Temperature (Kelvin) | 5000K |
| Material | Aluminum / Plastic |
| Finish | Clear |
| Lensed | Yes |
| Lens Finish | Clear |
| Operating Frequency | 50-60Hz |
| Operating Temp | -20C (-4F) to +65C (+149F) |
| Power Factor | >0.88 |
| Three-Way | No |
| MOD | 5.87" |
| MOL | 9.25" |
| Each Quantity | 1 |
| Each Cubic Ft. | 0.3391 |
| Pack Type | Box |
| Quantity In Pack | 1 |
| Case UPC | 10045923287159 |
| Case Quantity | 4 |
| Case Length | 15.35" |
| Case Width | 15.35" |
| Case Height | 11.49" |
| Case Weight | 19.51 |
| Case Cubic Ft. | 1.5667 |
| Catalog Description | 80 Watt LED HID Replacement - 5000K - Mogul extended base - Type B Ballast Bypass -277-347 Volt |
| Description | 80W/LED/HID/5K/277-347V/EX39 |
| DLC Approved | No |
| UNSPSC | 39101628 |
| Ballasting Requirements | Ballast Bypass-Direct wire only 277-347V |
| CO Terse | Lawful for Sale |
| HI Terse | Lawful for Sale |
| NV Terse | Lawful for sale |
| VT Terse | Lawful for sale |
| WA Terse | Lawful for sale |
| Enclosure Rating | Enclosed Rated Lamp |
| Image File Name | S28715.jpg |
| Includes | Safety chain |
| Installation Notes | Not for use in vapor tight fixtures. |
| Minimum Compartment Size | Length: 17.3 in. Width: 9.25 in. Depth: 9.25 in. |
| Rated For Enclosed Fixture | Yes |
| SDS class | LED_Lamp |
| Technology | LED |
| Thermal Management | Hi-PRO lamps are manufactured with a new Thermal Management circuit design (Temperature Control). |
| Working Voltage | AC 250-380V |
| Each Length In. | 7.4 |
| Each Width In. | 7.4 |
| Each Height In. | 10.7 |
| Each Weight Lb. | 4.36 |
| Substitute | S23167 |
| Company | SATCO |
| Status | Discontinued |
| Product Name | 80 Watt LED HID Replacement 5000K Mogul Extended Base |
