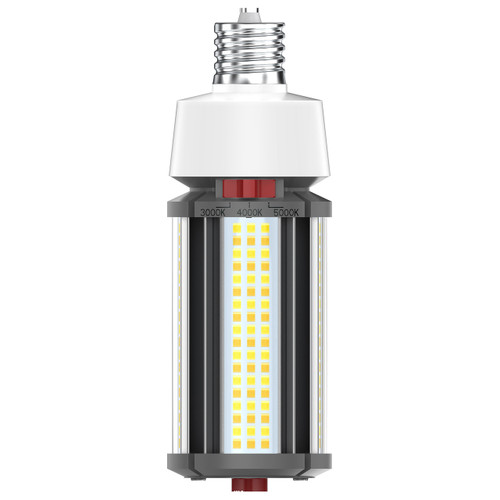

SATCO NUVO's 45 watt LED lamp is the lamp of choice for large scale applications. Illuminate gymnasiums, warehouses, or any other venue with high ceilings requiring superior light output. This CCT selectable lamp delivers 50,000 hours of clean, energy saving light.
| bundle | 1 |
|---|---|
| spec sheet | https://snap2satco.com/specifications/specsheet.php?sku=S23165 |
| INS URL | https://assets.satco.com/media-prod/image/upload/Certs/S23165_Instructions.pdf |
| Drawing | https://assets.satco.com/media-prod/image/upload/Certs/S23165_Dimensional_Drawing.pdf |
| Collection | Hi-Pro |
| Lighting Type | Lamps |
| Fixture Type | Corncob |
| Tariff Code | 8539.52.0091 |
| Warranty | 5 Years |
| Country of Origin | Cambodia |
| CA Web Text | Lawful for Sale |
| Housing Color | Dark Gray |
| FCC Compliant | Yes |
| RoHS Compliant | Yes |
| Certifications | DLC, cRUus, cULus |
| Location Rating | Damp |
| Indoor Outdoor | Indoor/Outdoor |
| IP Rating | IP64 |
| Amps | 0.162-0.094A |
| ANSI Base | EX39 |
| Ballast Bypass Direct | Ballast Bypass |
| Beam Spread | 300° |
| Burning Position | Universal |
| CCT Selectable | Yes |
| Color of Light | Warm to Cool White |
| Color Rendering Index (CRI) | 80+ |
| Dimmable | Yes |
| Dimming Technology | Via WiFi Module 80-954 & Starfish App |
| HID Equiv | 200W |
| Avg Rated Hours | 50000 |
| Incandescent Equiv | 125W |
| Base | Mogul Extended |
| Lamp Filament | LED |
| Shape | Corncob |
| Lamp Ballast Type | Type B |
| Brightness (Lumens) | 5850/6300/6075 |
| Voltage | 277-480 |
| Wattage | 45 |
| Color Temperature (Kelvin) | 3000K/4000K/5000K |
| Material | Aluminum / Polycarbonate (PC) |
| Finish | White |
| THD | 8.80% |
| Lensed | Yes |
| Lens Finish | Clear |
| Lens Material | Plastic |
| Operating Frequency | 50/60Hz |
| Operating Temp | -30C (-22F) to +45C (+113F) |
| Photocell | Optional |
| Power Factor | 0.9 |
| Surge Protection | Built-In Surge Protection - 4KV |
| Three-Way | No |
| MOD | 3.35" |
| MOL | 9.53" |
| Each Quantity | 1 |
| Each Cubic Ft. | 0.0851 |
| Pack Type | Box |
| Quantity In Pack | 1 |
| Case UPC | 10045900000000 |
| Case Quantity | 12 |
| Case Length | 15.35" |
| Case Width | 11.57" |
| Case Height | 11.6" |
| Case Weight | 24.88 |
| Case Cubic Ft. | 1.1922 |
| Catalog Description | 45 Watt LED HID Replacement - CCT Selectable - Type B - Ballast Bypass - Mogul Extended Base - 277-480 Volt - ColorQuick Technology |
| Description | 45W/LED/CCT/277-480V/EX39 |
| DLC Approved | Yes |
| UNSPSC | 39101628 |
| Ballasting Requirements | Ballast Bypass |
| Dimmable Function | Only dimmable via WiFi Module 80-954 (available for purchase) and via the Starfish App |
| DLC Classification | Standard |
| DLC ID | S-PBFMTJ |
| DLC Primary Use | Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B) |
| Enclosure Rating | Enclosed Rated Lamp |
| Image File Name | S23165.jpg |
| Installation Notes | Not for use in vapor tight fixtures. |
| NSF Approved | No |
| Rated For Enclosed Fixture | Yes |
| SDS class | LED_Lamp |
| Technology | LED |
| Each Length In. | 10.98 |
| Each Width In. | 3.66 |
| Each Height In. | 3.66 |
| Each Weight Lb. | 1.85 |
| Replaces | S28713 |
| Replaces | S8713 |
| Company | SATCO |
| Status | Active |
| Product Name | 45W LED HID Replacement CCT Selectable Type B Ballast B |
