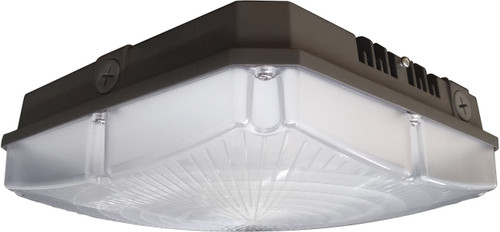

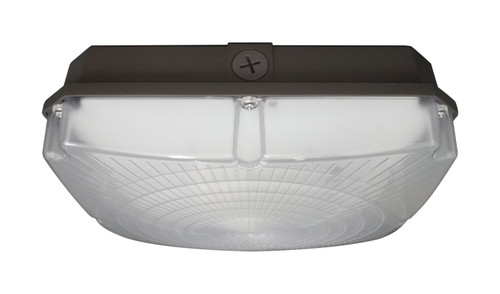

SATCO NUVO's 65-981 Field Selectable 10 inch square canopy fixture is an ideal choice for multiple applications. This fixture gives users the flexibility to choose from three wattage and three CCT options during installation. With a choice of surface mounting using the hinged universal bracket or 3/4-inch pendant mounting, installation of this luminary is a breeze. The two side knockouts allow for wiring access to be fast and efficient. The sleek bronze die-cast aluminum housing, the IK08 impact-rated vandal-resistant polycarbonate lens, and the IP65 wet location rating, ensures reliable illumination even in the most adverse weather conditions.
| Tariff Code | 9405.11.6020 |
|---|---|
| UNSPSC | 26121536 |
| Warranty | 5-Years |
| Country of Origin | Vietnam |
| Additional Info | UV stabilized powder coated finish |
| Bulb Included | Integrated |
| CA Prop 65 | Lead |
| CA Web Text | Lawful for sale |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| Title 20 | Exempt |
| T24 Compliant | No |
| Dimension String | L:10.06" W:10.06" H:4.19" |
| Finish | Bronze |
| Fixture shape | Square |
| Indoor Outdoor | Outdoor |
| IP Rating | IP65 |
| Material | Die-Cast Aluminum |
| Operating Temp | -30C (-22F) to +45C (+113F) |
| Safety Listing | cULus - Certified |
| Location Rating | Wet |
| SDS class | LED_Fixture |
| Technology | LED |
| Volts | 120V-277V |
| Voltage Text | Range Voltage;AC Only |
| Watts | 45W/60W/70W |
| Length In. | 10.06 |
| Width In. | 10.06 |
| Height In. | 4.19 |
| Weight Lb. | 5.03 |
| IOT Enabled | No |
| Has Camera | No |
| Each UPC | 045923659478 |
| Each Quantity | 1 |
| Each Length In. | 11.89 |
| Each Width In. | 5.51 |
| Each Height In. | 11.61 |
| Each Weight Lb. | 5.29 |
| Each Cubic Ft. | 0.4402 |
| Pack Type | Color Box |
| Quantity In Pack | 1 |
| Case UPC | 10045923659475 |
| Case Quantity | 4 |
| Case Length In. | 23.03 |
| Case Width In. | 12.48 |
| Case Height In. | 12.4 |
| Case Weight Lb. | 25.02 |
| Case Cubic Ft. | 2.0625 |
| Replaces | 65-142;65-143;65-144;65-145;65-146;65-147;65-148;65-149 |
| Dimmers | IP710-LFZ;DS710-10Z;SF10P;DF10P;DVSTV;NFTV;DVSCSTV;MS-Z101;MS-Z101-V;NTSTV-DV;CD4FBLW;ADPD4FBL3P2W4;RH4FBL3PTCCCV6;RMJS-8T-DV-B + PJ2-3BRL-GWH-L01 |
| Accessories | 65-150 |
| Specifications | https://www.satco.com/catalog/product/specsheets/65-981 |
| Instructions | https://assets.satco.com/media-prod/image/upload/Certs/65-981_Instructions.pdf |
| Drawing | https://assets.satco.com/media-prod/image/upload/Certs/65-981_Dimensional_Diagram.pdf |
| ANSI Base | Integrated |
| Beam Spread | 150 |
| BUG Rating | B3-U3-G3 |
| CCT Selectable | Yes |
| Color Temp | Soft White to Natural Light |
| Connection | Direct Wired |
| CRI | 80+ |
| Dimmable | Yes-Dimmable |
| Dimmable Function | 0-10V Dimming |
| DLC Approved | Yes |
| DLC Classification | Premium |
| DLC ID | S-TVN5KW |
| DLC Primary Use | Parking Garage Luminaires |
| FCC Compliant | Yes |
| Finish Family | Bronze |
| Product Type | Canopy |
| Has Emergency Battery | No |
| HID Equiv | 94W/125W/158W |
| Avg Rated Hours | 50000 |
| Incandescent Equiv | 300W/400W/500W |
| Lamp Base | Integrated |
| Lamp Shape | Integrated LED |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Lumens | 5625L-9450L |
| Mounting Procedure | Ceiling;Pendant Hanging Surface |
| Operating Frequency | 50/60Hz |
| Power Factor | 0.9 |
| Replaceable Light Source | No |
| RoHS Compliant | Yes |
| Style | Utility |
| Surge Protection | Built-in surge protection - 4KV |
| Temperature (CCT) | 3000K/4000K/5000K |
| THD | 9.50% |
| Wattage Selectable | Yes |
| Sensor Occupancy Vacancy | No |
| Photocell | No |
| Order In Multiples Of | 1 |
| Shipping Tier | 1 |
| bundle | 1 |
