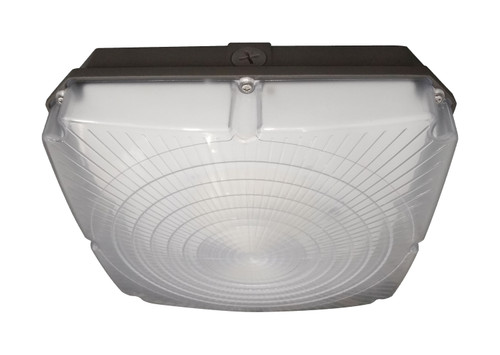

SATCO NUVO's 65-148 70 watt, 10 inch low profile canopy fixture provides broad, even light distribution in all commercial applications. Perfect for commercial or large area lighting applications, this dimmable, square fixture is made of die cast aluminum with a bronze finish. Combining rugged construction and versatility, these canopy lights cover a multitude of applications. At a temperature of 4000 kelvins, this fixture provides 50,000 hours of cool white light.
| Tariff Code | 9405.11.6020 |
|---|---|
| UNSPSC | 39111538 |
| Warranty | 5-Years |
| Country of Origin | Vietnam |
| Additional Info | UV stabilized powder coated finish |
| Bulb Included | Integrated |
| CA Prop 65 | Lead |
| CA Web Text | Lawful for sale |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| Title 20 | Exempt |
| T24 Compliant | No |
| Dimension String | L:10.00" W:10.00" H:3.75" |
| ENERGY STAR | No |
| Finish | Bronze |
| Fixture shape | Square |
| Indoor Outdoor | Outdoor |
| IP Rating | IP65 |
| Material | Die-Cast Aluminum |
| Operating Temp | -40C (-40F) to +40C (+104F) |
| Safety Listing | cULus - Certified |
| Location Rating | Wet |
| SDS class | LED_Fixture |
| Technology | LED |
| Volts | 120V-277V |
| Voltage Text | Range Voltage |
| Watts | 70W |
| Length In. | 10 |
| Width In. | 10 |
| Height In. | 3.75 |
| Weight Lb. | 5.65 |
| IOT Enabled | No |
| Has Camera | No |
| Each UPC | 045923531484 |
| Each Quantity | 1 |
| Each Length In. | 11.89 |
| Each Width In. | 5.51 |
| Each Height In. | 11.61 |
| Each Weight Lb. | 5.95 |
| Each Cubic Ft. | 0.4402 |
| Pack Type | Box |
| Quantity In Pack | 1 |
| Case UPC | 10045923531481 |
| Case Quantity | 4 |
| Case Length In. | 23.03 |
| Case Width In. | 12.48 |
| Case Height In. | 12.4 |
| Case Weight Lb. | 27.45 |
| Case Cubic Ft. | 2.0625 |
| Substitute | 65-981 |
| Dimmers | ADPD4FBL3P2W4;DF10P;DS710-10Z;DVSCSTV;DVSTV;IP710-LFZ;MS-Z101;MS-Z101-V;NTSTV-DV;SF10P |
| Accessories | 65-150;86-203 |
| Specifications | https://www.satco.com/catalog/product/specsheets/65-148 |
| Instructions | https://assets.satco.com/media-prod/image/upload/Certs/65-148_Instructions_EnSpFr.pdf |
| ANSI Base | Integrated |
| Beam Spread | 150 |
| BUG Rating | B3-U3-G2 |
| CCT Selectable | No |
| Color Temp | Cool White |
| Connection | Direct Wired |
| CRI | 80+ |
| Dimmable | Yes-Dimmable |
| Dimmable Function | 0-10V Dimming Only |
| DLC Approved | Yes |
| DLC Classification | Premium |
| DLC ID | PLE46C9RR7U7 |
| DLC Primary Use | Parking Garage Luminaires |
| FCC Compliant | Yes |
| Finish Family | Bronze |
| Product Type | Canopy |
| Has Emergency Battery | No |
| Avg Rated Hours | 50000 |
| Incandescent Equiv | 550W |
| Lamp Base | Integrated |
| Lamp Shape | Integrated LED |
| Lens Material | Polycarbonate (PC) |
| Lumens | 8400L |
| Mounting Procedure | Ceiling |
| Operating Frequency | 50/60Hz |
| Power Factor | 0.9 |
| Replaceable Light Source | No |
| RoHS Compliant | Yes |
| Style | Utility |
| Surge Protection | Built-in surge protection - 4KV |
| Temperature (CCT) | 4000K |
| THD | 10.80% |
| Wattage Selectable | No |
| Photocell | Multiple Optional Sensors Available |
| Order In Multiples Of | 1 |
| Shipping Tier | 1 |
| bundle | 1 |
