Introducing SATCO NUVO's versatile High Bay Fixtures, designed for ultimate lighting adaptability. Our field selectable fixtures comes with interchangeable optical lenses, offering unparalleled flexibility to meet various lighting requirements. The included 90 degrees x 90 degrees optical lens ensures even light distribution for most general applications, while optional lenses are available as accessories for specialized lighting needs. In addition to lens versatility, these fixtures offer three wattage and color temperature options, a flicker-free driver for seamless illumination, 6kV surge protection for added durability, and 0-10V dimming capability for precise control. For enhanced energy efficiency, an integrated sensor port is readily accessible, allowing seamless installation of optional PIR or microwave motion sensors. These sensors can be conveniently configured using an optional remote control. Designed for surface, suspension, and pendant mounting capabilities, these high bays are the ultimate lighting solution that adapts to all your needs.
| bundle | 1 |
|---|---|
| spec sheet | https://snap2satco.com/specifications/specsheet.php?sku=65-1011 |
| INS URL | https://assets.satco.com/media-prod/image/upload/Certs/65-1011_Instructions.pdf |
| Drawing | https://assets.satco.com/media-prod/image/upload/Certs/65-1011_Dimensional_Diagram.pdf |
| Lighting Type | Fixtures |
| Fixture Type | Linear Hi-Bay |
| Tariff Code | 9405.11.6020 |
| Warranty | 5 Years |
| Country of Origin | Vietnam |
| CA Web Text | Lawful for Sale |
| FCC Compliant | Yes |
| RoHS Compliant | Yes |
| Certifications | DLC, cULus |
| Location Rating | Damp |
| Indoor Outdoor | Indoor |
| IP Rating | IP20 |
| CA Prop 65 | Lead |
| ANSI Base | Integrated |
| Beam Spread | 90°x90° |
| CCT Selectable | Yes |
| Color of Light | Soft White to Natural Light |
| Color Rendering Index (CRI) | 80+ |
| Dimmable | Yes |
| Dimming Technology | 0-10V |
| HID Equiv | 300W |
| Avg Rated Hours | 50000 |
| Base | Integrated |
| Shape | Integrated LED |
| Brightness (Lumens) | 15655-21714 |
| Voltage | 120-277 |
| Wattage | 110/130/155 |
| Bulb Included | Yes |
| Color Temperature (Kelvin) | 3000K/4000K/5000K |
| Material | Die-Cast Aluminum |
| Finish | White |
| THD | <20% |
| Lens Material | Polycarbonate (PC) |
| Operating Frequency | 50/60Hz |
| Operating Temp | -40C (-40F) to +55C (+131F) |
| Power Factor | >0.9 |
| Surge Protection | Built-In Surge Protection - 6KV |
| Has Driver | Yes |
| Mounting Type | Surface/Suspension: Mounting Bracket/Cables/Chain |
| Wattage Selectable | Yes |
| Dimensions | L: 14.17" x W: 11.02" x H: 1.77" |
| Each Quantity | 1 |
| Each Cubic Ft. | 0.3016 |
| Pack Type | Brown Box |
| Quantity In Pack | 1 |
| Case UPC | 10045900000000 |
| Case Quantity | 1 |
| Case Length | 14.96" |
| Case Width | 11.81" |
| Case Height | 2.95" |
| Case Weight | 6.61 |
| Case Cubic Ft. | 0.3016 |
| Catalog Description | LED Linear High-Bay With Interchangeable Lens - 110W/130W/155W Wattage Selectable - 3K/4K/5K CCT Selectable |
| Description | LED SELECTABLE LINEAR HIGH BAY |
| Finish Family | White |
| DLC Approved | Yes |
| ENERGY STAR | No |
| UNSPSC | 39111546 |
| Dimmable Function | 0-10V Dimming |
| DLC Classification | Premium |
| DLC ID | S-K0QYWM |
| DLC Primary Use | High-Bay Luminaires for Commercial and Industrial Buildings |
| Image File Name | 65-1011.jpg |
| Includes | 41 Inch Suspension Kit |
| SDS class | LED_Fixture |
| Technology | LED |
| Each Length In. | 14.96 |
| Each Width In. | 11.81 |
| Each Height In. | 2.95 |
| Each Weight Lb. | 6.61 |
| Dimmers | IP710-LFZ |
| Dimmers | DS710-10Z |
| Dimmers | DF10P |
| Dimmers | DVSTV |
| Dimmers | NFTV |
| Dimmers | DVSCSTV |
| Dimmers | MS-Z101 |
| Dimmers | MS-Z101-V |
| Dimmers | NTSTV-DV |
| Dimmers | CD4FBLW |
| Dimmers | ADPD4FBL3P2W4 |
| Dimmers | RH4FBL3PTCCCV6 |
| Dimmers | RMJS-8T-DV-B + PJ2-3BRL-GWH-L01 |
| Voltage Text | Range Voltage |
| Voltage Text | AC Only |

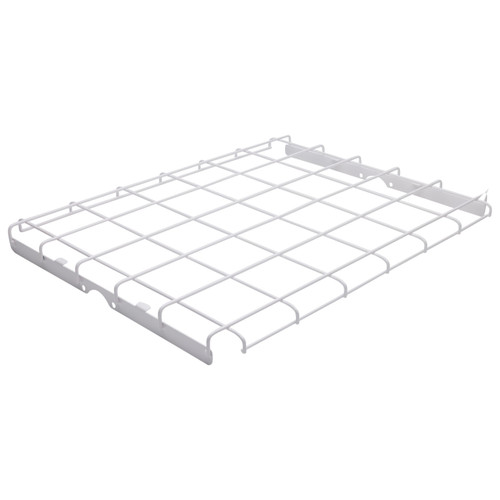

| Accessories | 65-1016 |
| Accessories | 65-1019 |
| Accessories | 65-1020 |
| Accessories | 65-1021 |
| Accessories | 86-217 |
| Accessories | 86-218 |
| Accessories | 86-219 |
| Accessories | 86-220 |
| Accessories | 65-1014 |
| Accessories | 65-1015 |
| Accessories | 65-1009 |
| Company | NUVO |
| Status | Active |
| Product Name | LED Linear High-Bay Interchangeable Lens 110W/130W/155W 3K |
