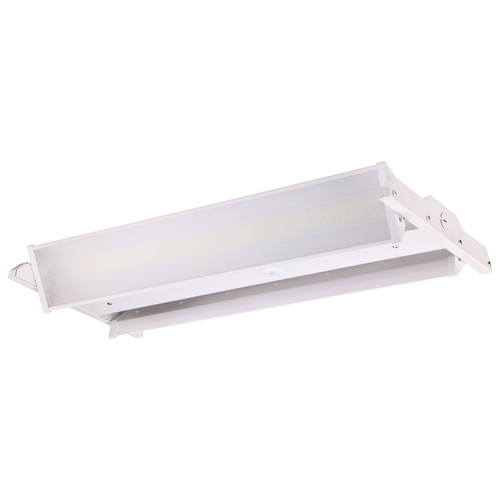

SATCO NUVO's 65-642R1 110 watt high bay LED fixture is a rugged lighting solution for commercial applications. Illuminate work areas and retail spaces with this durable, adjustable fixture. This dimmable fixture is sleek, functional, and delivers 50,000 hours of natural white light.
| Tariff Code | 9405.11.6020 |
|---|---|
| UNSPSC | 39111546 |
| Warranty | 5-Years |
| Country of Origin | Vietnam |
| Bulb Included | Integrated |
| CA Prop 65 | Lead |
| CA Web Text | Lawful for sale |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| Title 20 | Exempt |
| T24 Compliant | No |
| Dimension String | L:26.00" W:12.00" H:1.88" |
| ENERGY STAR | No |
| Finish | White |
| Fixture shape | Rectangle |
| Indoor Outdoor | Indoor |
| IP Rating | IP40 |
| Material | Aluminum Alloy |
| Operating Temp | -40C (-40F) to +50C (+122F) |
| Safety Listing | cULus - Certified |
| Location Rating | Damp |
| SDS class | LED_Fixture |
| Technology | LED |
| Volts | 120V-277V |
| Voltage Text | Range Voltage;AC Only |
| Watts | 110W |
| Length In. | 26 |
| Width In. | 12 |
| Height In. | 1.88 |
| Weight Lb. | 7.72 |
| Wire Temp Rating | 105C (221F) |
| Wire Color | White / Black / Green / Gray / Yellow |
| Wire Length In. | 5.91 |
| IOT Enabled | No |
| Has Camera | No |
| Each UPC | 045923656187 |
| Each Quantity | 1 |
| Each Length In. | 30.12 |
| Each Width In. | 15.16 |
| Each Height In. | 4.72 |
| Each Weight Lb. | 10.12 |
| Each Cubic Ft. | 1.2472 |
| Pack Type | Box |
| Quantity In Pack | 1 |
| Case UPC | 10045923656184 |
| Case Quantity | 1 |
| Case Length In. | 30.12 |
| Case Width In. | 15.16 |
| Case Height In. | 4.72 |
| Case Weight Lb. | 9.46 |
| Case Cubic Ft. | 1.2472 |
| Replaces | 65-642 |
| Dimmers | ADPD4FBL3P2W4;DF10P;DS710-10Z;DVSCSTV;DVSTV;IP710-LFZ;MS-Z101;MS-Z101-V;NTSTV-DV;SF10P;RMJS-8T-DV-B + PJ2-3BRL-GWH-L01 |
| Accessories | 65-650;65-651;65-652;86-209;86-217;86-218;86-219;86-220 |
| Specifications | https://www.satco.com/catalog/product/specsheets/65-642R1 |
| Instructions | https://assets.satco.com/media-prod/image/upload/Certs/65-642R1_Instructions.pdf |
| ANSI Base | Integrated |
| Beam Spread | 100 |
| CCT Selectable | No |
| Color Temp | Natural Light |
| Connection | Hardwire |
| CRI | 80+ |
| Dimmable | Yes-Dimmable |
| Dimmable Function | 0-10V Dimming Only |
| DLC Approved | Yes |
| DLC Classification | Premium |
| DLC ID | S-KRL2C7 |
| DLC Primary Use | High-Bay Luminaires for Commercial and Industrial Buildings |
| FCC Compliant | Yes |
| Finish Family | White |
| Product Type | Linear Hi-Bay |
| Has Emergency Battery | No |
| Avg Rated Hours | 50000 |
| IC Rated | Yes |
| Incandescent Equiv | 200W |
| Lamp Base | Integrated |
| Lamp Shape | Integrated LED |
| Lens Finish | Frost |
| Lens Material | Polycarbonate (PC) |
| Lumens | 16169L |
| Mounting Procedure | Ceiling |
| Operating Frequency | 50-60Hz |
| Power Factor | 0.9 |
| Replaceable Light Source | No |
| RoHS Compliant | Yes |
| Style | Utility |
| Surge Protection | Built-in surge protection - 4KV |
| Temperature (CCT) | 5000K |
| THD | 15% |
| Wattage Selectable | No |
| Wire Quantity | 5 |
| Photocell | Multiple Optional Sensors Available |
| Order In Multiples Of | 1 |
| Shipping Tier | 1 |
| bundle | 1 |
