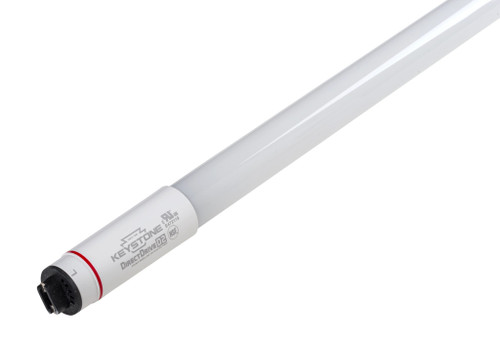

Keystone KT-LED40T8-96GC-840-D2 43W 8ft LED T8 Tube, 4000K, Ballast Bypass, 120-277V

Overview

This 96 inch T8 LED tube draws 43W and runs on line voltage once the ballast is removed. It puts out about 5,500 lumens of neutral cool white light as a replacement for F96T8 fluorescent lamps. Rated life is 50,000 hours, which means far fewer replacements.

Features

• 43W LED replaces F96T8
• 5,500 lumens at 4000K
• CRI 80+ for accurate color rendering
• Type B - ballast bypass (direct wire)
• Dimmable with an add-on accessory (see spec sheet)
• 240° beam spread
• 120-277V input
• Frosted Shatterproof Glass

Specifications at a Glance

Applications

• Offices and classrooms
• Warehouses and back-of-house areas
• Retail stores and grocery
• Parking garages and stairwells

Compatibility

Requires removing or bypassing the fluorescent ballast and wiring the lampholders to line voltage (double ended wiring). Fits Fa8 sockets. Rated for 120-277V.

Frequently Asked Questions

Q: Do I need to remove the ballast?
A: Yes. This tube runs on line voltage, so the existing fluorescent ballast is removed and the sockets are wired directly. Check the spec sheet for single-ended or double-ended wiring and use the lampholders it calls for.

Q: Why is there a minimum order quantity?
A: This item ships in Keystone's sealed carton of 10, which protects it in transit, so it is sold in multiples of 10.
