Overview

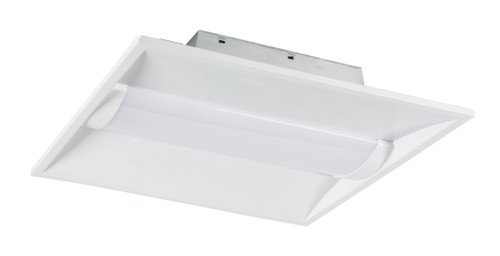

A 35/30/24W LED troffer delivering about 4550/3900/3150 lumens at selectable 3500/4000/5000K. Wattage and/or color temperature are field-selectable, so one SKU covers several job requirements. It dims with 0-10V controls. Rated life is 50,000 hours.
Features
- 35/30/24W power draw
- 4550/3900/3150 lumens at selectable 3500/4000/5000K
- CRI 80+ for accurate color rendering
- Dimmable (0-10V)
- 120-277V input
- Center Basket
- 50,000 hour rated life
Specifications at a Glance
| Product Details | |
|---|---|
| Keystone Part # | KT-CBLED35PS-22C-8CSA-VDIM/CR |
| UPC | 843654166025 |
| Wattage | 35/30/24W |
| Brightness (Lumens) | 4550/3900/3150 |
| Color Temperature (Kelvin) | 3500/4000/5000K |
| Color Rendering Index (CRI) | 80+ |
| Input Voltage | 120-277V |
| Nominal Size | 2x2 |
| Dimmable | Yes (0-10V) |
| Avg Rated Hours | 50000 |
| Finish | White |
| Mounting | Ceiling Mount |
| Construction | Center Basket |
| Case Quantity | 1 |
Applications
- Offices and conference rooms
- Schools
- Healthcare facilities
- Drop-ceiling retrofits
Compatibility
Rated for 120-277V input. Dims with 0-10V controls; check the spec sheet for compatible dimmers. Mounting: Ceiling Mount.
Frequently Asked Questions
Q: What kind of dimmer does it need?
A: It is rated for 0-10V dimming. Use a dimmer listed for LED loads, and check the spec sheet for any accessory the dimming method requires.
Q: Why is there a minimum order quantity?
A: Larger items like this cost more to ship, so the minimum order is 3.
| bundle | 1 |
|---|---|
| Product Name | 2x2 LED Troffer, 35/30/24W Selectable, 3500/4000/5000K, Dimmable, 120-277V |
| Company | KEYSTONE |
| Status | Active |
| spec sheet | https://keystonetech.widen.net/content/rbxrlncipz/original/KT-CBLEDXXPS-XXC-8CSA-VDIM_XX.pdf |
| Wattage | 35/30/24W |
| Brightness (Lumens) | 4550/3900/3150 |
| Color Temperature (Kelvin) | 3500/4000/5000K |
| Color Rendering Index (CRI) | 80+ |
| Input Voltage | 120-277V |
| Nominal Size | 2x2 |
| Dimmable | Yes (0-10V) |
| Avg Rated Hours | 50000 |
| Finish | White |
| Mounting | Ceiling Mount |
| Construction | Center Basket |
| Case Quantity | 1 |
