Overview

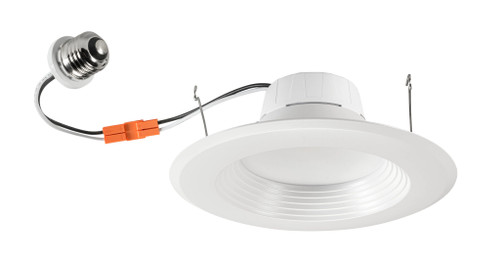

A 14/10/8W LED retrofit downlight trim delivering about 1250/950/800 lumens at selectable 2700/3000/3500/4000/5000K. Wattage and/or color temperature are field-selectable, so one SKU covers several job requirements. It dims with TRIAC controls. Rated life is 50,000 hours.
Features
- 14/10/8W power draw
- 1250/950/800 lumens at selectable 2700/3000/3500/4000/5000K
- CRI 90+ for accurate color rendering
- Dimmable (TRIAC)
- 90° beam spread
- 120V input
- 50,000 hour rated life
Specifications at a Glance
| Product Details | |
|---|---|
| Keystone Part # | KT-LED14PSRD-6C-9CSF-DIM-B |
| UPC | 843654167848 |
| Wattage | 14/10/8W |
| Brightness (Lumens) | 1250/950/800 |
| Color Temperature (Kelvin) | 2700/3000/3500/4000/5000K |
| Color Rendering Index (CRI) | 90+ |
| Input Voltage | 120V |
| Base | E26 |
| Nominal Size | 6 in Circular |
| Dimmable | Yes (TRIAC) |
| Beam Spread | 90° |
| Avg Rated Hours | 50000 |
| Finish | Black |
| Mounting | Recessed |
| Case Quantity | 4 |
Applications
- Commercial and residential ceilings
- Hospitality and multifamily
- Retail
- Corridors and lobbies
Compatibility
Rated for 120V input. Dims with TRIAC controls; check the spec sheet for compatible dimmers. Mounting: Recessed.
Frequently Asked Questions
Q: What kind of dimmer does it need?
A: It is rated for TRIAC dimming. Use a dimmer listed for LED loads, and check the spec sheet for any accessory the dimming method requires.
| bundle | 1 |
|---|---|
| Product Name | 6 in Circular LED Retrofit Downlight Trim, 14/10/8W Selectable, 2700/3000/3500/4000/5000K, Dimmable, 120V |
| Company | KEYSTONE |
| Status | Active |
| spec sheet | https://ideadigitalasset.com/DAMRoot/Original/160/14057_U0V2HKAWEGSNTZI1.pdf |
| Wattage | 14/10/8W |
| Brightness (Lumens) | 1250/950/800 |
| Color Temperature (Kelvin) | 2700/3000/3500/4000/5000K |
| Color Rendering Index (CRI) | 90+ |
| Input Voltage | 120V |
| Base | E26 |
| Nominal Size | 6 in Circular |
| Dimmable | Yes (TRIAC) |
| Beam Spread | 90° |
| Avg Rated Hours | 50000 |
| Finish | Black |
| Mounting | Recessed |
| Case Quantity | 4 |
