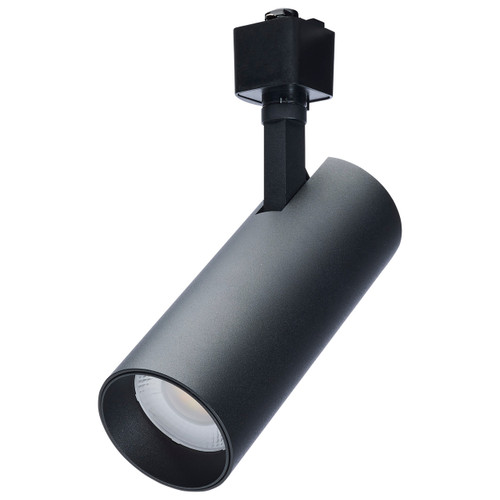

SATCO NUVO's beam adjustable LED track head fixtures bring both functionality and style to your lighting projects. These fixtures are CCT selectable, allowing users to choose from five different color temperature options. With an impressive CRI rating of 90, they produce crisp, true-to-life white light. The track heads offer precise beam control, with a 90 Degrees adjustable head and a beam range from 20 Degrees to 50 Degrees, making them ideal for a variety of settings such as museums, art galleries, retail stores, offices, and restaurants. Compatible with SATCO H-Track systems and a variety of accessories (sold separately), these fixtures are versatile enough to meet any lighting need. Available in matte black or matte white finishes and in 15 or 30 watts, these track heads will enhance any space with both beauty and efficiency.
| bundle | 1 |
|---|---|
| spec sheet | https://snap2satco.com/specifications/specsheet.php?sku=TH732 |
| INS URL | https://assets.satco.com/media-prod/image/upload/Certs/TH732_Instructions.pdf |
| Drawing | https://assets.satco.com/media-prod/image/upload/Certs/TH732_Dimensional_Diagram.pdf |
| Lighting Type | Fixtures |
| Fixture Type | Track Head |
| Tariff Code | 9405.11.6020 |
| Warranty | 3 Years |
| Country of Origin | Vietnam |
| CA Web Text | California T24 Listed |
| FCC Compliant | Yes |
| RoHS Compliant | Yes |
| Certifications | cETLus |
| Location Rating | Dry |
| Indoor Outdoor | Indoor |
| CA Prop 65 | Lead |
| ANSI Base | Integrated |
| Beam Spread | 20°-50° |
| CCT Selectable | Yes |
| Color of Light | Warm White to Natural Light |
| Color Rendering Index (CRI) | 90+ |
| Dimmable | Yes |
| Dimming Technology | 120V |
| Avg Rated Hours | 30000 |
| Incandescent Equiv | 75W |
| Base | Integrated |
| Shape | Integrated LED |
| Brightness (Lumens) | 1050 |
| Voltage | 120 |
| Wattage | 15 |
| Bulb Watt | 15 |
| Bulb Included | Yes |
| Color Temperature (Kelvin) | 2700K/3000K/3500K/4000K/5000K |
| Material | Aluminum / Steel |
| Style | Contemporary |
| Finish | Matte Black |
| Lens Material | Poly methyl methacrylate (PMMA) |
| Operating Frequency | 60Hz |
| Operating Temp | -20C (-4F) to +40C (+104F) |
| Power Factor | >0.9 |
| Mounting Type | Track |
| Track Head Style | H-Style |
| Extension | 8.63" |
| Dimensions | L: 6.31" x W: 2.43" x H: 5.88" x E: 8.63" |
| Each Quantity | 1 |
| Each Cubic Ft. | 0.0426 |
| Pack Type | Box |
| Quantity In Pack | 1 |
| Case UPC | 10045900000000 |
| Case Quantity | 12 |
| Case Length | 11.38" |
| Case Width | 9.92" |
| Case Height | 9.92" |
| Case Weight | 18.14 |
| Case Cubic Ft. | 0.6481 |
| Catalog Description | 15 Watt LED Track Head - 20 to 50 Degree Adjustable Beam Spread - CCT Selectable - Matte Black Finish |
| Description | 15W BEAM ADJ TRACK HEAD |
| Finish Family | Black |
| UNSPSC | 39111508 |
| Dimmable Function | 120V only |
| Image File Name | TH732.jpg |
| SDS class | LED_Fixture |
| Technology | LED |
| Each Length In. | 3.07 |
| Each Width In. | 2.68 |
| Each Height In. | 8.94 |
| Each Weight Lb. | 1.51 |
| Dimmers | MA-PRO |
| Dimmers | RRD-PRO |
| Dimmers | HQRD-PRO |
| Dimmers | HQRA-PRO |
| Dimmers | ST-PRO-N |
| Dimmers | RRST-PRO-N |
| Dimmers | HRST-PRO-N |
| Dimmers | PD-5NE |
| Dimmers | MRF2S-6ELV |
| Dimmers | DVRF-5NE |
| Dimmers | CTRP-253P |
| Dimmers | DVRP-253P |
| Dimmers | NTRP-250 |
| Dimmers | SELV-300P |
| Dimmers | IPE04-1L |
| Dimmers | 66ELV |
| Dimmers | DSE06-10Z |
| Dimmers | VPE06-1LZ |
| Dimmers | MACL-153M |
| Dimmers | STCL-153M |
| Dimmers | MACL-LFQ |
| Dimmers | MSCL-OP153M |
| Dimmers | DVCL-153P |
| Dimmers | RCL-153PNL |
| Dimmers | AYCL-153P |
| Dimmers | SCL-153P |
| Dimmers | CTCL-153P |
| Dimmers | LECL-153P |
| Dimmers | TTCL-100H |
| Dimmers | DVCL-253P |
| Dimmers | AYCL-253P |
| Dimmers | NTCL-250 |
| Dimmers | TGCL-153PH |
| Dimmers | PD-6WCL |
| Dimmers | PD-10NXD |
| Dimmers | DVRF-6L |
| Dimmers | RRD-10D |
| Dimmers | RRD-6ND |
| Dimmers | RRD-H6BRL |
| Dimmers | HQRD-6ND |
| Dimmers | HQRD-10D |
| Dimmers | HQRD-10NBD |
| Dimmers | HQRD-HN6BRL |
| Dimmers | HQRD-6CL |
| Dimmers | RRD-6CL |
| Dimmers | RNL06-10Z |
| Dimmers | TAL06P-C2 |
| Dimmers | DDMX1 |
| Dimmers | 86/103 |
| Dimmers | S11268 |
| Dimmers | 6672 |
| Dimmers | 6674 |
| Dimmers | IPL06 |
| Dimmers | TSL06 |
| Dimmers | DSM10 |
| Dimmers | TSM10 |
| Dimmers | 66DF-10W |
| Dimmers | DSL06 |
| Dimmers | DDL06 |
| Dimmers | MAELV-600 |
| Dimmers | SLV-600P |
| Dimmers | DW6HD |
| Dimmers | DH6HD |
| Dimmers | DG6HD |
| Dimmers | DZ6HD |
| Dimmers | DL6HD |
| Dimmers | DUL06P-C2 |
| Dimmers | VSUL06D |
| Dimmers | RHCL450PTC |
| Dimmers | RH703PTUTC |
| Dimmers | WWRL50WH |
| Dimmers | REL06-WW |
| Dimmers | WSX-PDT-WH |
| Dimmers | RF9640-ND |
| Dimmers | SAL06P |
| Dimmers | ADTP703TU |
| Dimmers | DAL06P-C2 |
| Dimmers | SUF7 |
| Dimmers | NXFRD-UNV |
| Dimmers | S11270 |
| Dimmers | 80/2699 |
| Dimmers | 80/2700 |
| Dimmers | 80/2701 |
| Dimmers | 80/2702 |
| Dimmers | 80/2703 |
| Dimmers | 80/2704 |
| Dimmers | PD-3PCL |
| Dimmers | MRF2-3LD |
| Dimmers | MRF2-3PD |
| Dimmers | RRD-3LD |
| Dimmers | RRD-3PD |
| Dimmers | HQR-3LD |
| Dimmers | HQR-3PD |
| Dimmers | PHPM-WBX-120 |
| Dimmers | ODMR0205 |
| Dimmers | MR42400PLS |
| Dimmers | MA-PRO;RRD-PRO;HQRD-PRO;HQRA-PRO;ST-PRO-N;RRST-PRO-N;HRST-PRO-N;PD-5NE;MRF2S-6ELV;DVRF-5NE;CTRP-253P;DVRP-253P;NTRP-250;SELV-300P;IPE04-1L;66ELV;DSE06-10Z;VPE06-1LZ;MACL-153M;STCL-153M;MACL-LFQ;MSCL-OP153M;DVCL-153P;RCL-153PNL;AYCL-153P;SCL-153P;CTC |
| Bulb Volts | 120V |
| Voltage Text | AC Only |
| Accessories | TP143 |
| Accessories | TP163 |
| Accessories | TP164 |
| Accessories | TP165 |
| Accessories | TP166 |
| Accessories | TP247 |
| Accessories | TP249 |
| Accessories | TP251 |
| Accessories | TP253 |
| Accessories | TP255 |
| Accessories | TP258 |
| Accessories | TR119 |
| Accessories | TR121 |
| Accessories | TR123 |
| Accessories | TR125 |
| Company | NUVO |
| Status | Active |
| Product Name | 15 Watt LED Track Head 20 to 50 Degree Adjustable Beam Spread |
