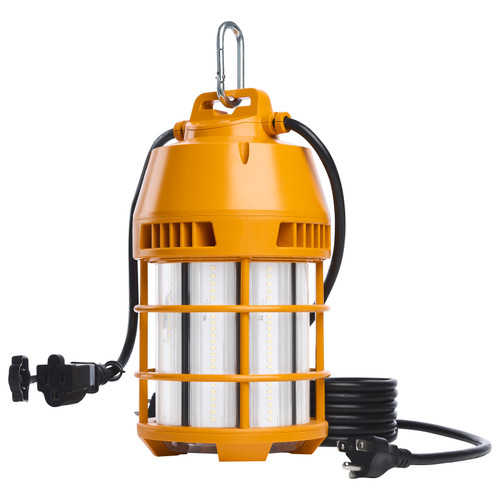

SATCO NUVO's S13175 Multi-Beam Temporary Work Light offers powerful, flexible illumination in a sleek new design. This 120V fixture features selectable wattages from 30W to 120W, producing up to 19,820 lumens at 5000K. Dual light panels expand from 10 to 360 degrees, with adjustable beam angles of 180, 280, or 360 degrees to direct light where needed. It includes a 10-foot power cord and integrated outlet for linking up to eight fixtures. A removable T-handle allows quick accessory changes, and a safety cable mounting kit is included for secure installation. The remote control offers on/off and dimming functionality. Built from durable plastic and aluminum with a clear polycarbonate lens and high-visibility gloss red finish, this fixture supports multiple setup configurations for maximum versatility.
| Tariff Code | 9405.42.6000 |
|---|---|
| UNSPSC | 26121536 |
| Warranty | 5-Years |
| Country of Origin | Vietnam |
| Bulb Included | Integrated |
| CA Prop 65 | Lead |
| CA Web Text | Lawful for sale |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| Title 20 | Exempt |
| T24 Compliant | No |
| Diameter In. | 5.07 |
| Dimension String | H:12.58" DIA:5.07" |
| Finish | Red |
| Indoor Outdoor | Indoor and Outdoor |
| Includes | Safety Cable Mount Kit; Remote Control |
| IP Rating | IP64 |
| Material | Aluminum / Plastic |
| Operating Temp | -40C (-40F) to +40C (+104F) |
| Safety Listing | cULus - Listed |
| Location Rating | Damp |
| Technology | LED |
| Volts | 120V |
| Voltage Text | AC Only |
| Watts | 30W/70W/100W/120W |
| Width In. | 5.07 |
| Height In. | 12.58 |
| Weight Lb. | 6.6 |
| IOT Enabled | No |
| Has Camera | No |
| Each UPC | 045923131752 |
| Each Quantity | 1 |
| Each Length In. | 7.76 |
| Each Width In. | 7.36 |
| Each Height In. | 15.08 |
| Each Weight Lb. | 6.6 |
| Each Cubic Ft. | 0.4984 |
| Pack Type | Box |
| Quantity In Pack | 1 |
| Case UPC | 10045923131759 |
| Case Quantity | 4 |
| Case Length In. | 16.22 |
| Case Width In. | 15.43 |
| Case Height In. | 15.87 |
| Case Weight Lb. | 30.36 |
| Case Cubic Ft. | 2.2985 |
| Accessories | S13176 |
| Specifications | https://www.satco.com/catalog/product/specsheets/S13175 |
| Instructions | https://assets.satco.com/media-prod/image/upload/Certs/S13175_Instructions.pdf |
| Drawing | https://assets.satco.com/media-prod/image/upload/Certs/S13175_Dimensional_Diagram.pdf |
| ANSI Base | Plug |
| Beam Spread | 180/280/360 |
| CCT Selectable | No |
| Color Temp | Natural Light |
| Connectable Units | 8 |
| CRI | 80+ |
| Dimmable | Yes-Dimmable |
| Dimmable Function | Step Dimming; Dimmable with Remote |
| FCC Compliant | Yes |
| Finish Family | Red |
| Product Type | Work Light |
| Has Emergency Battery | No |
| HID Equiv | 400W |
| Avg Rated Hours | 50000 |
| Lamp Base | Plug |
| Lamp Shape | Integrated LED |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Lumens | 5370L/12395L/17025L/19820L |
| Mounting Procedure | Plug in and Hook |
| Operating Frequency | 50/60Hz |
| Power Factor | >0.9 |
| Replaceable Light Source | No |
| RoHS Compliant | Yes |
| Style | Utility |
| Surge Protection | Built-in surge protection - 4KV |
| Temperature (CCT) | 5000K |
| THD | <20% |
| Wattage Selectable | Yes |
| Cord Length | 120 |
| Order In Multiples Of | 1 |
| Shipping Tier | 1 |
| bundle | 1 |
