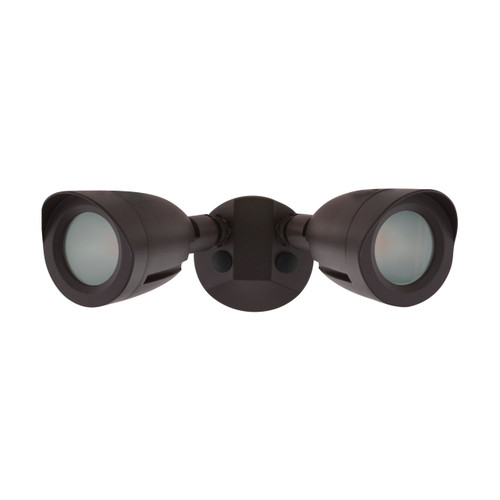

SATCO NUVO's field selectable dual head LED security flood lights set a new standard for reliable and versatile safety lighting. Ideal for both residential and commercial applications, these fixtures can be mounted on walls or eaves to illuminate critical areas. All models come with dusk-to-dawn photocells and allow users to adjust color temperature (soft to natural white) and brightness (17 to 25 watts). Select models feature a PIR motion sensor with integrated Sentry light with a 180-degree detection range and can be manually overridden at the switch. Adjustments can be made to detection range, lux and standby time. These fixtures deliver comprehensive security lighting with style and efficiency.
| bundle | 1 |
|---|---|
| spec sheet | https://snap2satco.com/specifications/specsheet.php?sku=65-995 |
| INS URL | https://assets.satco.com/media-prod/image/upload/Certs/65-995_Instructions.pdf |
| Drawing | https://assets.satco.com/media-prod/image/upload/Certs/65-995_Dimensional_Diagram.pdf |
| Lighting Type | Fixtures |
| Fixture Type | Security Lighting |
| Tariff Code | 9405.11.8020 |
| Warranty | 5 Years |
| Country of Origin | Vietnam |
| CA Web Text | Lawful for Sale |
| FCC Compliant | Yes |
| RoHS Compliant | Yes |
| Certifications | cULus |
| Location Rating | Wet |
| Indoor Outdoor | Outdoor |
| IP Rating | IP65 |
| CA Prop 65 | Lead |
| ANSI Base | Integrated |
| Beam Spread | 103° |
| CCT Selectable | Yes |
| Color of Light | Soft White to Natural Light |
| Color Rendering Index (CRI) | 80+ |
| Dimmable | No |
| HID Equiv | 70W |
| Avg Rated Hours | 50000 |
| Incandescent Equiv | 125W |
| Base | Integrated |
| Shape | Integrated LED |
| Brightness (Lumens) | 2190-3352 |
| Voltage | 120 |
| Wattage | 17/25 |
| Bulb Included | Yes |
| Color Temperature (Kelvin) | 3000K/4000K/5000K |
| Material | Die-Cast Aluminum |
| Finish | White |
| THD | <20% |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Operating Frequency | 50/60Hz |
| Operating Temp | -30C (-22F) to +50C (+122F) |
| Photocell | Has Photocell |
| Power Factor | >0.9 |
| Surge Protection | Built-In Surge Protection - 2KV |
| Mounting Type | Wall/Eave |
| Wattage Selectable | Yes |
| Extension | 5.43" |
| Dimensions | W: 9.17" x H: 4.41" x E: 5.43" |
| Each Quantity | 1 |
| Each Cubic Ft. | 0.0794 |
| Pack Type | Box |
| Quantity In Pack | 1 |
| Case UPC | 10045900000000 |
| Case Quantity | 6 |
| Case Length | 14.37" |
| Case Width | 7.09" |
| Case Height | 9.84" |
| Case Weight | 15.84 |
| Case Cubic Ft. | 0.5802 |
| Catalog Description | LED Security Light - Dual Head - Field Selectable - White Finish |
| Description | LED 2 HEAD SECURITY FLOOD |
| Finish Family | White |
| UNSPSC | 39111613 |
| Image File Name | 65-995.jpg |
| Installation Notes | Mounts to Recessed or External Junction Boxes |
| SDS class | LED_Fixture |
| Technology | LED |
| Each Length In. | 6.69 |
| Each Width In. | 4.53 |
| Each Height In. | 4.53 |
| Each Weight Lb. | 2.2 |
| Voltage Text | AC Only |
| Company | NUVO |
| Status | Active |
| Product Name | LED Security Light Dual Head Field Selectable White |
