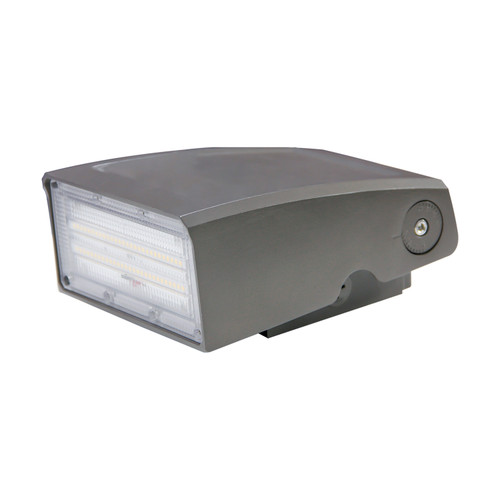

Engineered for directional performance and on-site flexibility, the 65-944 LED Large Adjustable Wall Pack delivers targeted outdoor illumination with precision control. Featuring selectable wattages of 80W/60W/45W and CCT choices from 3000K/4000K/5000K, this fixture can be adjusted at installation to match your exact project requirements. The adjustable head rotates up to 90-degrees, directing light exactly where it is needed for enhanced coverage and improved visibility. A built-in, bypassable photocell enables convenient dusk-to-dawn operation, while select dimmer compatibility supports additional energy management and customization. Constructed from durable die-cast aluminum with a corrosion-resistant bronze finish and an impact-resistant polycarbonate lens, these fixtures are built for long-term reliability in demanding environments.
| Tariff Code | 9405.42.6000 |
|---|---|
| UNSPSC | 39111612 |
| Warranty | 5-Years |
| Country of Origin | Vietnam |
| Bulb Included | Integrated |
| CA Prop 65 | Lead |
| CA Web Text | Lawful for sale |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| Title 20 | Exempt |
| T24 Compliant | No |
| Dimension String | W:8.50" H:4.41" E:11.04" |
| Finish | Bronze |
| Indoor Outdoor | Outdoor |
| IP Rating | IP65 |
| Material | Die-Cast Aluminum |
| Operating Temp | -40C (-40F) to +40C (+104F) |
| Safety Listing | cULus - Certified |
| Location Rating | Wet |
| Technology | LED |
| Volts | 120V-277V |
| Voltage Text | Range Voltage;AC Only |
| Watts | 45W/60W/80W |
| Width In. | 8.5 |
| Height In. | 4.41 |
| Extends In. | 11.04 |
| Weight Lb. | 4.96 |
| IOT Enabled | No |
| Each UPC | 045923410307 |
| Each Quantity | 1 |
| Each Length In. | 12.2 |
| Each Width In. | 9.65 |
| Each Height In. | 5.51 |
| Each Weight Lb. | 5.95 |
| Each Cubic Ft. | 0.3754 |
| Pack Type | Box |
| Quantity In Pack | 1 |
| Case UPC | 10045923410304 |
| Case Quantity | 4 |
| Case Length In. | 20.28 |
| Case Width In. | 12.99 |
| Case Height In. | 12.2 |
| Case Weight Lb. | 25.9 |
| Case Cubic Ft. | 1.8599 |
| Replaces | 65-678;65-679;65-680 |
| Specifications | https://www.satco.com/catalog/product/specsheets/65-944 |
| Instructions | https://assets.satco.com/media-prod/image/upload/Certs/65-944_Instructions.pdf |
| Drawing | https://assets.satco.com/media-prod/image/upload/Certs/65-944_Dimensional_Diagram.pdf |
| ANSI Base | Integrated |
| Beam Spread | 65x95 |
| CCT Selectable | Yes |
| Color Temp | Soft White to Natural Light |
| Connection | Hardwire |
| CRI | 80+ |
| Dimmable | Yes-Dimmable |
| Dimmable Function | 0-10V Dimming Only |
| FCC Compliant | Yes |
| Finish Family | Bronze |
| Product Type | Wall Pack |
| Has Emergency Battery | No |
| HID Equiv | 100W-250W |
| Avg Rated Hours | 50000 |
| Lamp Base | Integrated |
| Lamp Shape | Integrated LED |
| Lens Finish | Opaque |
| Lens Material | Impact Resistant PC |
| Lumens | 6251L-11264L |
| Mounting Procedure | Wall |
| Operating Frequency | 50/60Hz |
| Power Factor | >0.9 |
| Replaceable Light Source | No |
| RoHS Compliant | Yes |
| Style | Utility |
| Surge Protection | Built-in surge protection - 4KV |
| Temperature (CCT) | 3000K/4000K/5000K |
| THD | 9.81% |
| Wattage Selectable | Yes |
| Photocell | Yes - Bypassable |
