Designed to provide broad, effective illumination for commercial exteriors, the 65-942 LED Semi Cutoff Wall Pack combines performance, flexibility, and durability in one dependable solution. Field-selectable technology allows for on-site customization of light levels and color temperature, making it easy to adapt the fixture to the needs of the space. A built-in, bypassable photocell enables automatic dusk-to-dawn operation, while dimmer compatibility offers additional energy management options. The rugged die-cast aluminum housing with a corrosion-resistant bronze finish and impact-resistant polycarbonate lens ensures long-lasting reliability in demanding outdoor environments. With its semi-cutoff distribution, this fixture delivers wider forward light spread and increased vertical illumination.
| Tariff Code | 9405.42.6000 |
|---|---|
| UNSPSC | 39111612 |
| Warranty | 5-Years |
| Country of Origin | Vietnam |
| Bulb Included | Integrated |
| CA Prop 65 | Lead |
| CA Web Text | Lawful for sale |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| Title 20 | Exempt |
| T24 Compliant | No |
| Dimension String | W:12.62" H:5.83" E:5.26" |
| Finish | Bronze |
| Indoor Outdoor | Outdoor |
| IP Rating | IP65 |
| Material | Die-Cast Aluminum |
| Operating Temp | -40C (-40F) to +40C (+104F) |
| Safety Listing | cULus - Certified |
| Location Rating | Wet |
| Technology | LED |
| Volts | 120V-277V |
| Voltage Text | Range Voltage;AC Only |
| Watts | 45W/60W/80W |
| Width In. | 12.62 |
| Height In. | 5.83 |
| Extends In. | 5.26 |
| Weight Lb. | 3.31 |
| IOT Enabled | No |
| Each UPC | 045923410284 |
| Each Quantity | 1 |
| Each Length In. | 13.39 |
| Each Width In. | 7.28 |
| Each Height In. | 6.3 |
| Each Weight Lb. | 4.94 |
| Each Cubic Ft. | 0.3554 |
| Pack Type | Box |
| Quantity In Pack | 1 |
| Case UPC | 10045923410281 |
| Case Quantity | 4 |
| Case Length In. | 15.55 |
| Case Width In. | 14.17 |
| Case Height In. | 13.98 |
| Case Weight Lb. | 22.71 |
| Case Cubic Ft. | 1.7826 |

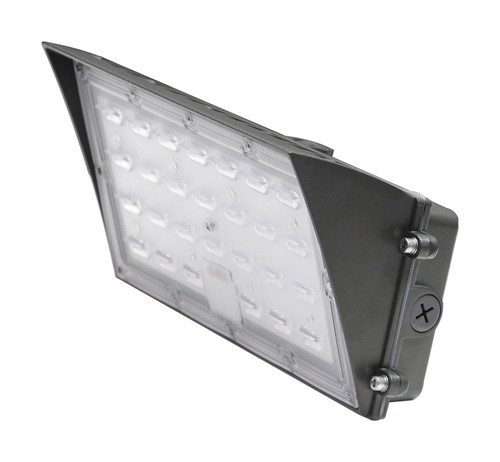

| Replaces | 65-674;65-675;65-676 |
| Specifications | https://www.satco.com/catalog/product/specsheets/65-942 |
| Instructions | https://assets.satco.com/media-prod/image/upload/Certs/65-942_Instructions.pdf |
| Drawing | https://assets.satco.com/media-prod/image/upload/Certs/65-942_Dimensional_Diagram.pdf |
| ANSI Base | Integrated |
| Beam Spread | 55x105 |
| CCT Selectable | Yes |
| Color Temp | Soft White to Natural Light |
| Connection | Hardwire |
| CRI | 80+ |
| Dimmable | Yes-Dimmable |
| Dimmable Function | 0-10V Dimming Only |
| FCC Compliant | Yes |
| Finish Family | Bronze |
| Product Type | Wall Pack |
| Has Emergency Battery | No |
| HID Equiv | 100W-250W |
| Avg Rated Hours | 50000 |
| Lamp Base | Integrated |
| Lamp Shape | Integrated LED |
| Lens Finish | Opaque |
| Lens Material | Impact Resistant PC |
| Lumens | 7243L-12436L |
| Mounting Procedure | Wall |
| Operating Frequency | 50/60Hz |
| Power Factor | >0.9 |
| Replaceable Light Source | No |
| RoHS Compliant | Yes |
| Style | Utility |
| Surge Protection | Built-in surge protection - 4KV |
| Temperature (CCT) | 3000K/4000K/5000K |
| THD | 11.60% |
| Wattage Selectable | Yes |
| Photocell | Yes - Bypassable |
| Shipping Tier | 1 |
| bundle | 1 |
