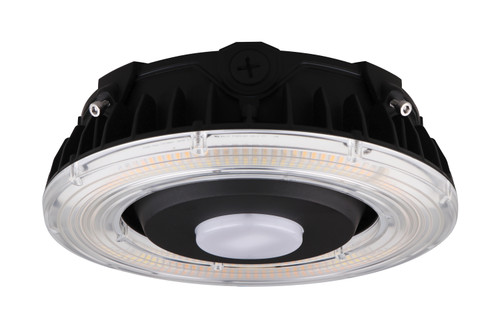

SATCO NUVO's 65-624 25-watt LED canopy light combines rugged construction and versatility. The selectable color temperatures, coupled with a variety of surface and pendant mount options, cover a multitude of applications. This versatile canopy fixture is easy to install and designed to withstand tough environments.
| Tariff Code | 9405.11.6020 |
|---|---|
| UNSPSC | 39111538 |
| Warranty | 5-Years |
| Country of Origin | China |
| Additional Info | UV stabilized powder coated finish |
| Bulb Included | Integrated |
| CA Prop 65 | Lead |
| CA Web Text | Lawful for sale |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| Title 20 | Exempt |
| T24 Compliant | No |
| Diameter In. | 10.03 |
| Dimension String | H:3.13" DIA:10.02" |
| ENERGY STAR | No |
| Finish | Bronze |
| Indoor Outdoor | Outdoor |
| IP Rating | IP65 |
| Material | Aluminum Alloy |
| Operating Temp | -30C (-22F) to +50C (+122F) |
| Safety Listing | cULus - Listed |
| Location Rating | Wet |
| SDS class | LED_Fixture |
| Technology | LED |
| UL Application | Outdoor |
| Volts | 120V-277V |
| Voltage Text | Range Voltage;AC Only |
| Watts | 25W |
| Width In. | 10.03 |
| Height In. | 3.13 |
| Weight Lb. | 4.41 |
| Wire Temp Rating | 105C (221F) |
| Wire Color | White / Black / Green / Gray / Yellow |
| Wire Length In. | 11.81 |
| IOT Enabled | No |
| Has Camera | No |
| Each UPC | 045923674235 |
| Each Quantity | 1 |
| Each Length In. | 11.81 |
| Each Width In. | 11.81 |
| Each Height In. | 5.51 |
| Each Weight Lb. | 5.5 |
| Each Cubic Ft. | 0.4447 |
| Pack Type | Box |
| Quantity In Pack | 1 |
| Case UPC | 10045923674232 |
| Case Quantity | 2 |
| Case Length In. | 12.6 |
| Case Width In. | 11.81 |
| Case Height In. | 12.6 |
| Case Weight Lb. | 12.1 |
| Case Cubic Ft. | 1.085 |
| Dimmers | ADPD4FBL3P2W4;DF10P;DS710-10Z;DVSCSTV;DVSTV;IP710-LFZ;MS-Z101;MS-Z101-V;NTSTV-DV;SF10P |
| Accessories | 65-622;86-213 |
| Specifications | https://www.satco.com/catalog/product/specsheets/65-624 |
| Instructions | https://assets.satco.com/media-prod/image/upload/Certs/65-624_Instructions.pdf |
| ANSI Base | Integrated |
| Beam Spread | 150 |
| BUG Rating | B1-U3-G1 |
| CCT Selectable | Yes |
| Color Temp | Warm to Cool White |
| Connection | Hardwire |
| CRI | 80+ |
| Dimmable | Yes-Dimmable |
| Dimmable Function | 0-10V Dimming Only |
| DLC Approved | Yes |
| DLC Classification | Premium |
| DLC ID | PLNTBHUGY0NY |
| DLC Primary Use | Parking Garage Luminaires |
| FCC Compliant | Yes |
| Finish Family | Bronze |
| Product Type | Canopy |
| Has Emergency Battery | No |
| Avg Rated Hours | 50000 |
| IC Rated | Yes |
| Incandescent Equiv | 80W |
| Lamp Base | Integrated |
| Lamp Shape | Integrated LED |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Lumens | 2800L-3322L |
| Mounting Procedure | Ceiling |
| Operating Frequency | 50-60Hz |
| Power Factor | 0.9 |
| Replaceable Light Source | No |
| RoHS Compliant | Yes |
| Style | Utility |
| Surge Protection | Built-in surge protection - 2.5KV |
| Temperature (CCT) | 3000K/4000K/5000K |
| THD | 15% |
| Wattage Selectable | No |
| Wire Quantity | 5 |
| Order In Multiples Of | 1 |
| Shipping Tier | 1 |
| bundle | 1 |
