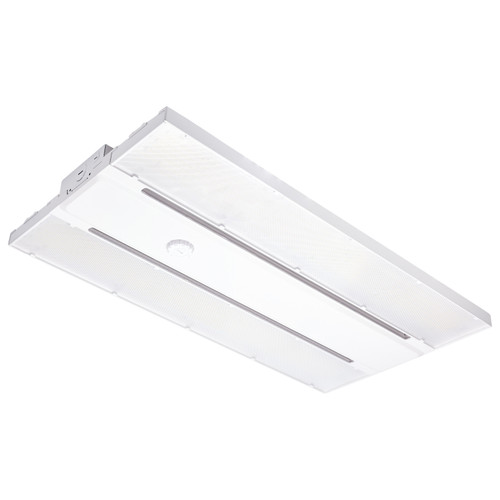

The SATCO NUVO 65-1511 LED Beam Selectable Linear Highbay is designed for higher-output commercial and industrial applications. Selectable beam distributions of 45x100, 65x95, or 90x90 provide precise light control. Field-selectable wattage options of 120W, 135W, or 160W deliver 17,600 to 24,200 lumens with efficacy up to 151 LPW, with selectable CCTs of 3000K, 4000K, and 5000K. Featuring a die-cast aluminum housing and polycarbonate lens, it supports universal 120-347V operation and includes an integrated sensor port and suspension kit. IP20 and IK09 rated, wet-location suitable, DLC 6.0 Listed, rated for 50,000 hours, and backed by a 5-year warranty.
| Tariff Code | 9405.11.6020 |
|---|---|
| UNSPSC | 39111546 |
| Warranty | 5-Years |
| Country of Origin | Vietnam |
| Bulb Included | Integrated |
| CA Prop 65 | Lead |
| CA Web Text | Lawful for sale |
| CA Regulations | T20 Exempt - Fixtures Not Regulated |
| Title 20 | Exempt |
| T24 Compliant | No |
| Dimension String | L:15.00" W:11.20" H:1.89" |
| Finish | White |
| Height Max In. | 42.89 |
| Indoor Outdoor | Indoor |
| IP Rating | IP20 |
| Material | Die-Cast Aluminum |
| Operating Temp | -40C (-40F) to +50C (+122F) |
| Safety Listing | cULus - Listed |
| Location Rating | Damp |
| Technology | LED |
| Volts | 120V-347V |
| Voltage Text | Range Voltage;AC Only |
| Watts | 160W/135W/120W |
| Length In. | 15 |
| Width In. | 11.2 |
| Height In. | 1.89 |
| Weight Lb. | 5.5 |
| Starfish Operational Humidity | 20% to 90% R.H. |
| Sensor Type | Daylight |
| Each UPC | 045923412479 |
| Each Quantity | 1 |
| Each Length In. | 15.83 |
| Each Width In. | 12.01 |
| Each Height In. | 3.15 |
| Each Weight Lb. | 7.04 |
| Each Cubic Ft. | 0.3466 |
| Pack Type | Box |
| Quantity In Pack | 1 |
| Case UPC | 10045923412476 |
| Case Quantity | 1 |
| Case Length In. | 15.83 |
| Case Width In. | 12.01 |
| Case Height In. | 3.15 |
| Case Weight Lb. | 7.04 |
| Case Cubic Ft. | 0.3466 |
| Accessories | 65-1514;65-1517;65-1014;65-1015;86-238;86-239;86-237 |
| Specifications | https://www.satco.com/catalog/product/specsheets/65-1511 |
| Instructions | https://assets.satco.com/media-prod/image/upload/Certs/65-1511_Instructions.pdf |
| Drawing | https://assets.satco.com/media-prod/image/upload/Certs/65-1511_Dimensional_Diagram.pdf |
| ANSI Base | Integrated |
| Beam Spread | 45x100/65x95/90x90 |
| CCT Selectable | Yes |
| Chain Length In. | 41 |
| Color Temp | Soft White to Natural Light |
| CRI | 80 |
| Dimmable | Yes-Dimmable |
| Dimmable Function | 0-10V Dimming |
| DLC Approved | Yes |
| DLC Classification | Premium |
| DLC ID | S-H33ZL3 |
| DLC Primary Use | High-Bay Luminaires for Commercial and Industrial Buildings |
| FCC Compliant | Yes |
| Finish Family | White |
| Product Type | Linear Hi-Bay |
| Has Driver | Yes |
| Has Emergency Battery | No |
| HID Equiv | 225W-300W |
| Avg Rated Hours | 50000 |
| Lamp Base | Integrated |
| Lamp Shape | Integrated LED |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Lumens | 17600L-24200L |
| Mounting Procedure | Ceiling |
| NSF Approved | No |
| Operating Frequency | 50/60Hz |
| Power Factor | >0.9 |
| Replaceable Light Source | No |
| RoHS Compliant | Yes |
| Style | Utility |
| Surge Protection | Built-in surge protection - 6KV |
| Temperature (CCT) | 3000K/4000K/5000K |
| THD | <20% |
| Wattage Selectable | Yes |
| Order In Multiples Of | 1 |
| Shipping Tier | 1 |
| bundle | 1 |
