Satco | 65-1284 | Momentum X-Connector for LED Linear System Black Finish

Satco

$54.40
(No reviews yet) Write a Review
SKU:
65-1284-S
UPC:
045923654350
Adding to cart… The item has been added

The SATCO/NUVO Momentum system delivers a seamless, customizable lighting solution engineered for architects, designers, and installers who need both precision and flexibility in commercial, hospitality, retail, institutional, and modern office environments. This versatile system features field-selectable wattage, CCT, and multiple up/down distribution modes, adapting instantly to specific lighting needs. It offers a refined architectural aesthetic with a slim, extruded-aluminum body and clean, continuous lines. These linear fixtures are available in 2-foot, 4-foot, and 8-foot lengths, with both black and white finish options. Illuminated L, T, X, and Y connectors, along with these versatile lengths, allow for limitless layouts. Designed as a true plug-and-play system with quick-connect wiring and magnetic mounting, installation is fast and easy. Choose from surface, recessed, suspension, and wall-mount options, to integrate effortlessly into any space. A wide range of accessories including optional PIR sensors ensure you can build the exact lighting environment envisioned, bringing architectural impact and functional performance together in one cohesive system.

  • Momentum X-Connector
  • Black Finish
  • bundle 1
    spec sheet https://snap2satco.com/specifications/specsheet.php?sku=65-1284
    Drawing https://assets.satco.com/media-prod/image/upload/Certs/65-1284_Dimensional_Diagram.pdf
    Lighting Type Components
    Tariff Code 9405.11.6010
    Warranty 1 Year
    Country of Origin Thailand
    Certifications cETLus
    Location Rating Damp
    CA Prop 65 Lead
    Wattage 6.6
    Material Aluminum
    Finish Black
    Operating Temp -20C (-4F) to +45C (+113F)

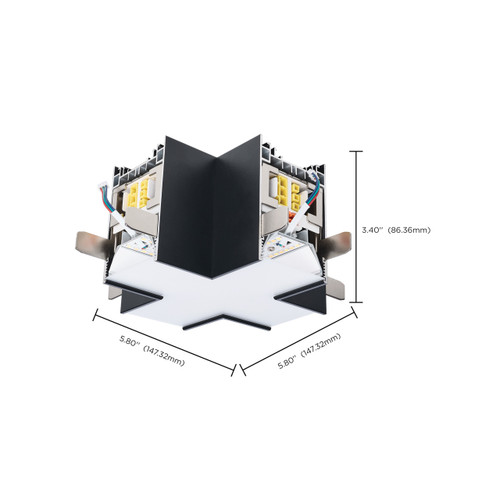

    Dimensions L: 5.80" x W: 5.80" x H: 3.40"
    Each Quantity 1
    Each Cubic Ft. 0.1552
    Pack Type Box
    Quantity In Pack 1
    Case UPC 10045923654357
    Case Quantity 6
    Case Length 16.54"
    Case Width 8.54"
    Case Height 13.78"
    Case Cubic Ft. 1.1264
    Catalog Description Momentum - X-Connector for LED Linear System - Black Finish
    Description LED X-CONNECTOR LINEAR SYSTEM
    UNSPSC 31163100
    Image File Name 65-1284.jpg
    Technology Not Applicable
    Each Length In. 7.87
    Each Width In. 4.33
    Each Height In. 7.87
    SkuRomance Copy SATCO's 65-1284 X-Connector is available in a black finish. It facilitates complex, intersectional geometric layouts using the linear fixtures. It is a key component for customized system designs that require four-way junctions.
    Dimmers IP710-LFZ
    Dimmers DS710-10Z
    Dimmers DF10P
    Dimmers DVSTV
    Dimmers NFTV
    Dimmers DVSCSTV
    Dimmers MS-Z101
    Dimmers MS-Z101-V
    Dimmers NTSTV-DV
    Dimmers CD4FBLW
    Dimmers ADPD4FBL3P2W4
    Dimmers RH4FBL3PTCCCV6
    Dimmers RMJS-8T-DV-B + PJ2-3BRL-GWH-L01
    For Use With 65-1280
    For Use With 65-1281
    For Use With 65-1282
    Company NUVO
    Status Active
    Product Name Momentum X-Connector for LED Linear System Black Finish
