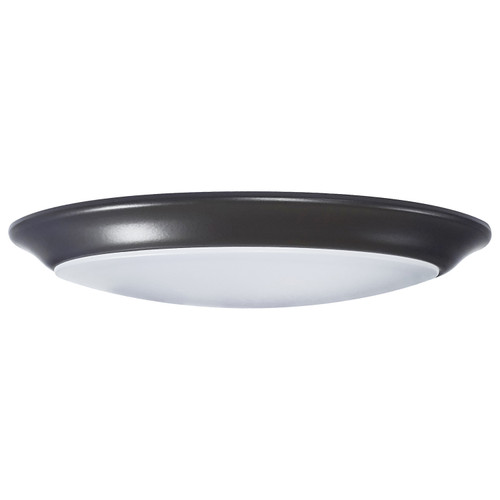

Bring style and performance to your space with SATCO NUVO's 62-1803R1, 7" CCT Selectable Disk Light in a bronze finish. Delivering 9.5 watts of energy-efficient illumination, this sleek fixture features five selectable color temperatures (2700K–5000K) and a high 90 CRI for superior light clarity. The compact design is dimmable, wet location rated, and protected by built-in 2.5kV surge protection-offering both versatility and reliability for a variety of residential and commercial applications.
| Tariff Code | 9405.11.8020 |
|---|---|
| UNSPSC | 39111521 |
| Warranty | 5-Years |
| Country of Origin | Thailand |
| Bulb Included | Integrated |
| CA Prop 65 | Lead |
| CA Web Text | Lawful for sale |
| CA Regulations | California T24 2016 - 2025 JA8 Listed |
| Title 20 | Exempt |
| T24 Compliant | Yes |
| Diameter In. | 7.4 |
| Dimension String | H:1.44" DIA:7.40" |
| ENERGY STAR | Yes |
| Finish | Bronze |
| Fixture shape | Round |
| Indoor Outdoor | Indoor |
| Material | Steel |
| Operating Temp | -20C (-4F) to +40C (+104F) |
| Safety Listing | cETLus |
| Location Rating | Wet |
| Technology | LED |
| Volts | 120V |
| Voltage Text | AC Only |
| Watts | 9.5W |
| Width In. | 7.4 |
| Height In. | 1.44 |
| Weight Lb. | 0.61 |
| IOT Enabled | No |
| Has Camera | No |
| Each UPC | 045923406287 |
| Each Quantity | 1 |
| Each Length In. | 7.52 |
| Each Width In. | 1.69 |
| Each Height In. | 7.52 |
| Each Weight Lb. | 0.77 |
| Each Cubic Ft. | 0.0553 |
| Pack Type | Color Box |
| Quantity In Pack | 1 |
| Case UPC | 10045923406284 |
| Case Quantity | 12 |
| Case Length In. | 15.55 |
| Case Width In. | 11.22 |
| Case Height In. | 8.46 |
| Case Weight Lb. | 10.21 |
| Case Cubic Ft. | 0.8542 |
| Replaces | 62-1803;62-1163;62-1666 |
| Dimmers | MA-PRO;RRD-PRO;HQRD-PRO;HQRA-PRO;ST-PRO-N;RRST-PRO-N;HRST-PRO-N;PD-5NE;MRF2S-6ELV;DVRF-5NE;CTRP-253P;DVRP-253P;NTRP-250;SELV-300P;IPE04-1L;66ELV;DSE06-10Z;VPE06-1LZ;MACL-153M;STCL-153M;MACL-LFQ;MSCL-OP153M;DVCL-153P;RCL-153PNL;AYCL-153P;SCL-153P;CTCL |
| Dimmers | -153P;LECL-153P;TTCL-100H;DVCL-253P;AYCL-253P;NTCL-250;TGCL-153PH;PD-6WCL;PD-10NXD;DVRF-6L;RRD-10D;RRD-6ND;RRD-H6BRL;HQRD-6ND;HQRD-10D;HQRD-10NBD;HQRD-HN6BRL;HQRD-6CL;RRD-6CL;RNL06-10Z;TAL06P-C2;DDMX1;S11268;6672;6674;IPL06;TSL06;DSM10;TSM10;66DF-10W |
| Dimmers | ;DSL06;DDL06;MAELV-600;SLV-600P;DW6HD;DH6HD;DG6HD;DL6HD;DZ6HD;DUL06P-C2;VSUL06D;RHCL450PTC;RH703PTUTC;WWRL50WH;REL06-WW;WSX-PDT-WH;RF9640-ND;SAL06P;DAL06P-C2;SUF7;NXFRD-UNV;S11270;80/2699;80/2700;80/2701;80/2702;80/2703;80/2704;PD-3PCL;MRF2-3LD;MRF2- |
| Dimmers | 3PD;RRD-3LD;RRD-3PD;HQR-3LD;HQR-3PD;PHPM-WBX-120;ODMR0205;MR42400PLS |
| Specifications | https://www.satco.com/catalog/product/specsheets/62-1803R1 |
| Instructions | https://assets.satco.com/media-prod/image/upload/Certs/62-1803R1_Instructions.pdf |
| Drawing | https://assets.satco.com/media-prod/image/upload/Certs/62-1803R1_Dimensional_Diagram.pdf |
| ANSI Base | Integrated |
| Beam Spread | 110 |
| CCT Selectable | Yes |
| Closet Rated | No |
| Color Temp | Warm White to Natural Light |
| Connection | Hardwire |
| CRI | 90 |
| Dimmable | Yes-Dimmable |
| Dimmable Function | Forward Phase |
| ES Unique ID | 4005960 |
| ES Category | Downlight Surface Mount |
| FCC Compliant | Yes |
| Finish Family | Bronze |
| Product Type | Disk Light |
| Has Emergency Battery | No |
| Avg Rated Hours | 50000 |
| Incandescent Equiv | 40W |
| Lamp Base | Integrated |
| Lamp Shape | Integrated LED |
| Lens Finish | White |
| Lens Material | Polycarbonate (PC) |
| Lumens | 780L |
| Mounting Procedure | Ceiling/Wall |
| Operating Frequency | 60Hz |
| Power Factor | 0.9 |
| Replaceable Light Source | No |
| RoHS Compliant | Yes |
| Sloped Ceiling Compatible | Yes |
| Style | Contemporary |
| Surge Protection | Built-in surge protection - 2.5KV |
| Temperature (CCT) | 2700K/3000K/3500K/4000K/5000K |
| Wattage Selectable | No |
| Order In Multiples Of | 1 |
| Shipping Tier | 1 |
| bundle | 1 |
