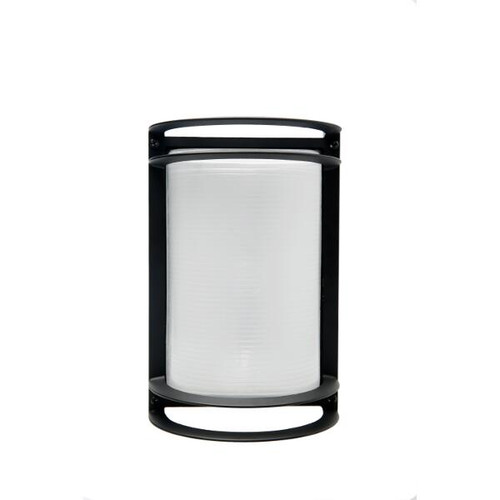

62-1389 is a member of Satco Nuvo's newest collection of lighting standard fixtures designed to incorporate the latest energy-efficient LED technology with rugged case and lens materials built to withstand the elements. This small oval bulkhead fixture is available in a black finish and is perfect for outdoor walkways, entrances, hallways, lobbies, poolside, patios, and many more applications. There is almost no outdoor residential or light commercial space that would not benefit from its superior LED light and energy efficiency.
| Tariff Code | 9405.11.6010 |
|---|---|
| UNSPSC | 39111605 |
| Warranty | 5-Years |
| Country of Origin | China |
| Bulb Included | Integrated |
| CA Prop 65 | Lead |
| ADA Compliant | No |
| CA Web Text | California T24 Listed |
| CA Regulations | California T24 2016 - 2025 JA8 Listed |
| Title 20 | Exempt |
| T24 Compliant | Yes |
| Dimension String | W:5.00" H:8.51" E:4.26" |
| ENERGY STAR | No |
| Finish | Black |
| Indoor Outdoor | Outdoor |
| Material | Die-Cast Aluminum |
| Operating Temp | -17C (-1.4F) to +45C (+113F) |
| Safety Listing | cETLus - Listed |
| Location Rating | Wet |
| SDS class | LED_Fixture |
| Technology | LED |
| Volts | 120V |
| Voltage Text | AC Only |
| Watts | 14W |
| Width In. | 5 |
| Height In. | 8.51 |
| Extends In. | 4.26 |
| Weight Lb. | 1.89 |
| IOT Enabled | No |
| Has Camera | No |
| Each UPC | 045923613890 |
| Each Quantity | 1 |
| Each Length In. | 8.46 |
| Each Width In. | 4.92 |
| Each Height In. | 4.72 |
| Each Weight Lb. | 2.1 |
| Each Cubic Ft. | 0.1137 |
| Pack Type | Box |
| Quantity In Pack | 1 |
| Case UPC | 10045923613897 |
| Case Quantity | 4 |
| Case Length In. | 11.02 |
| Case Width In. | 10.24 |
| Case Height In. | 10.43 |
| Case Weight Lb. | 8.38 |
| Case Cubic Ft. | 0.6811 |
| Dimmers | MSCL-OP153M;NTCL-250;RCL-153PNL;RH703PTUTC;RNL06-10Z;SCL-153P;STCL-153M;TGCL-153PH;TSL06;6672;6674;66ELV;86/103;ADTP703TU;AYCL-153P;AYCL-253P;CTCL-153P;CTRP-253P;DAL06P-C2;DDMX1;DG6HD;DH6HD;DL6HD;DSL06;DSL06-1LZ;DSM10;DUL06P-C2;DVCL-153P;DVCL-253P;DV |
| Dimmers | RP-253P;DW6HD;DZ6HD;HQRA-PRO;HQRD-10D;HQRD-10NBD;HQRD-6ND;HQRD-HN6BRL;HQRD-PRO;IPE04-1L;IPL06;LECL-153P;MA-PRO;MACL-153M;MACL-LFQ;NTRP-250;PD-10NXD;PD-6WCL;RHCL450PTC;RRD-6CL;RRD-6ND;RRD-H6BRL;RRD-PRO;RRST-PRO-N;S11268;SAL06P;ST-PRO-N;SUF7;TSM10;TTCL |
| Dimmers | -100H;VSUL06D |
| Specifications | https://www.satco.com/catalog/product/specsheets/62-1389 |
| Instructions | https://assets.satco.com/media-prod/image/upload/Certs/62-1389_Instructions.pdf |
| Drawing | https://assets.satco.com/media-prod/image/upload/Certs/62-1389_Dimensional_Drawing.pdf |
| ANSI Base | Integrated |
| CCT Selectable | No |
| Color Temp | Warm White |
| Connection | Hardwire |
| CRI | 90+ |
| Dimmable | Yes-Dimmable |
| DLC Approved | No |
| FCC Compliant | Yes |
| Finish Family | Black |
| Product Type | Bulk Head |
| Glass Finish | White |
| Has Driver | No |
| Has Emergency Battery | No |
| Avg Rated Hours | 50000 |
| Incandescent Equiv | 60W |
| Lamp Base | Integrated |
| Lamp Shape | Integrated LED |
| Lens Finish | White |
| Lens Material | Glass |
| Lumens | 800L |
| Mounting Procedure | Wall |
| Operating Frequency | 60Hz |
| Power Factor | 0.93 |
| Replaceable Light Source | No |
| RoHS Compliant | Yes |
| Style | Traditional |
| Surge Protection | Built-in surge protection - 1KV |
| Temperature (CCT) | 3000K |
| Wattage Selectable | No |
| Photocell | No |
| Order In Multiples Of | 1 |
| Shipping Tier | 1 |
| bundle | 1 |
