LED Cloud fixtures now feature Satco's ColorQuick Selectable CCT technology for even more versatility. Simple CCT selection and versatile design. The SATCO Cloud fixture is truly an all purpose lighting solution.
| bundle | 1 |
|---|---|
| spec sheet | https://snap2satco.com/specifications/specsheet.php?sku=62-1213 |
| INS URL | https://assets.satco.com/media-prod/image/upload/Certs/62-1213_Instructions.pdf |
| Drawing | https://assets.satco.com/media-prod/image/upload/Certs/62-1213_Dimensional_Drawing.pdf |
| Video | https://youtu.be/Gkeh84vxHT4 |
| Lighting Type | Fixtures |
| Fixture Type | Flush Mount |
| Sensor Coverage Detection Range | 10%/30%/50%/75%/100% |
| Tariff Code | 9405.11.8010 |
| Warranty | 3 Years |
| Country of Origin | China |
| CA Web Text | Lawful for Sale |
| FCC Compliant | Yes |
| RoHS Compliant | Yes |
| Certifications | cETLus |
| Location Rating | Damp |
| Indoor Outdoor | Indoor |
| CA Prop 65 | Lead |
| ANSI Base | Integrated |
| CCT Selectable | Yes |
| Color of Light | Warm to Cool White |
| Color Rendering Index (CRI) | 90+ |
| Dimmable | No |
| Avg Rated Hours | 50000 |
| Incandescent Equiv | 100W |
| Base | Integrated |
| Shape | Integrated LED |
| Brightness (Lumens) | 1230-1330 |
| Voltage | 120 |
| Wattage | 20.5 |
| Bulb Included | Yes |
| Color Temperature (Kelvin) | 3000K/4000K/5000K |
| Material | Steel |
| Style | Contemporary |
| Finish | White |
| Lens Finish | White |
| Lens Material | Acrylic |
| Operating Frequency | 60Hz |
| Operating Temp | -20C (-4F) to +40C (+104F) |
| Photocell | Integrated On/Off Microwave Sensor |
| Power Factor | 0.92 |
| Sensor Input Voltage | 120V-277V |
| Sensor Mounting Height | 19.69 ft (6m) Max |
| Sensor Operation | 2.5m - 6m |
| Sensor Operating Temperature | -20C (-4F) to +55C (+131F) |
| Sensor Time Delay | 5s |
| Sensor Time Delay | 30s |
| Sensor Time Delay | 1min |
| Sensor Time Delay | 5min |
| Sensor Time Delay | 10min |
| Sensor Time Delay | 20min |
| Sensor Time Delay | 30min |
| Sensor Make | Haisen |
| Sensor Model | HD-401S-9 |
| Sensor Mounting Type | Ceiling |
| Connection | Hardwire |
| Mounting Type | Ceiling/Wall |
| Sloped Ceiling Compatible | Yes |
| Diameter | 14" |
| Dimensions | H: 3.55" x DIA: 14" |
| Each Quantity | 1 |
| Each Cubic Ft. | 0.5383 |
| Pack Type | Color Box |
| Quantity In Pack | 1 |
| Case UPC | 10045923621502 |
| Case Quantity | 4 |
| Case Length | 16.93" |
| Case Width | 16.73" |
| Case Height | 16.93" |
| Case Weight | 12.13 |
| Case Cubic Ft. | 2.775 |
| Catalog Description | 14 inch - Acrylic Round - Flush Mounted - LED Light Fixture - CCT Selectable with Microwave Sensor - White Finish - 120V |
| Description | 14" ACRYLIC LED FLUSH FIXTURE |
| Finish Family | White |
| DLC Approved | No |
| ENERGY STAR | No |
| UNSPSC | 39111521 |
| Image File Name | 62-1213.jpg |
| Installation Notes | Ceiling/Wall Mounting |
| SDS class | LED_Fixture |
| Technology | LED |
| Each Length In. | 3.75 |
| Each Width In. | 15.75 |
| Each Height In. | 15.75 |
| Each Weight Lb. | 2.5 |

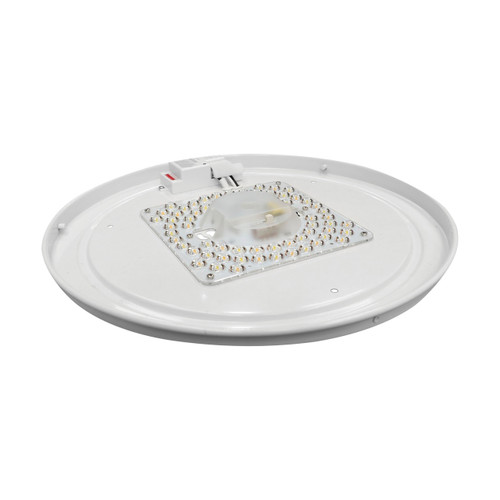

| SkuRomance Copy | The 62-1213 14 inch round flush mounted LED light fixture offers a frosted white acrylic lens, Satco's ColorQuick CCT selectability, and microwave motion detection sensors enabling the lights to go on and off as the room is entered and exited. |
| Substitute | 62-1853 |
| Closet Rated | Yes |
| NEC Compliance | Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5) |
| Company | NUVO |
| Status | Transitioning |
| Product Name | 14" Acrylic Round Flush Mounted LED Light Fixture CCT Selectable |
