Overview

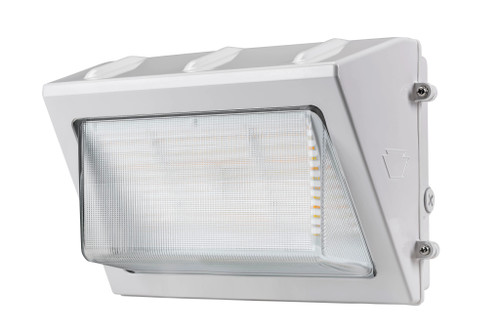

An 80W LED wall pack delivering about 11,360 lumens at selectable 3000/4000/5000K. Wattage and/or color temperature are field-selectable, so one SKU covers several job requirements. It dims with 0-10V controls. Rated life is 50,000 hours.
Features
- 80W LED replaces 320W MH
- 11,360 lumens at selectable 3000/4000/5000K
- CRI 80+ for accurate color rendering
- Dimmable (0-10V)
- 120-277V input
- 50,000 hour rated life
Specifications at a Glance
| Product Details | |
|---|---|
| Keystone Part # | KT-WPLED80-M1-8CSB-VDIM-W |
| UPC | 843654133799 |
| Wattage | 80W |
| Brightness (Lumens) | 11360 |
| Color Temperature (Kelvin) | 3000/4000/5000K |
| Color Rendering Index (CRI) | 80+ |
| Input Voltage | 120-277V |
| Nominal Size | Medium Housing |
| Dimmable | Yes (0-10V) |
| Avg Rated Hours | 50000 |
| Replaces | 320W MH |
| Finish | Bronze |
| Mounting | Wall Mount |
| Case Quantity | 1 |
Applications
- Building perimeters
- Loading docks
- Entrances and walkways
- Security lighting
Compatibility
Rated for 120-277V input. Dims with 0-10V controls; check the spec sheet for compatible dimmers. Mounting: Wall Mount.
Frequently Asked Questions
Q: What kind of dimmer does it need?
A: It is rated for 0-10V dimming. Use a dimmer listed for LED loads, and check the spec sheet for any accessory the dimming method requires.
| bundle | 1 |
|---|---|
| Product Name | LED Wall Pack, 80W, 3000/4000/5000K, Dimmable, 120-277V |
| Company | KEYSTONE |
| Status | Active |
| spec sheet | https://ideadigitalasset.com/DAMRoot/Original/161/14057_4GIP7DNX63TM8W2Q.pdf |
| Wattage | 80W |
| Brightness (Lumens) | 11360 |
| Color Temperature (Kelvin) | 3000/4000/5000K |
| Color Rendering Index (CRI) | 80+ |
| Input Voltage | 120-277V |
| Nominal Size | Medium Housing |
| Dimmable | Yes (0-10V) |
| Avg Rated Hours | 50000 |
| Replaces | 320W MH |
| Finish | Bronze |
| Mounting | Wall Mount |
| Case Quantity | 1 |
