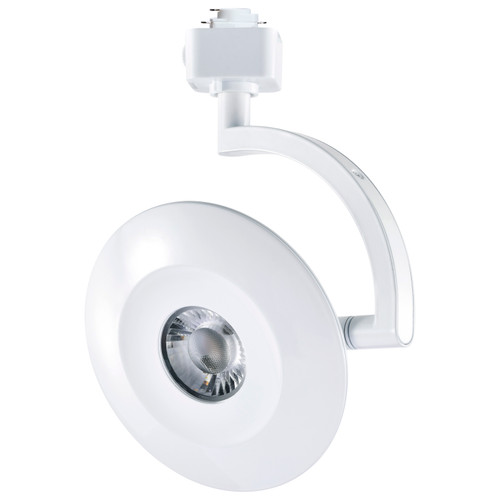

The SATCO NUVO JH5070 LED Orb track head is a sleek, compact fixture designed for J-style track systems. Finished in white, this modern Orb-shaped head features a swivel arm and a 355-degrees rotating head for precise directional control. A recessed CCT switch allows selection between 3000K, 4000K, and 5000K, while the 24-degrees beam angle delivers focused, accent lighting.
| Tariff Code | 9405.11.6010 |
|---|---|
| UNSPSC | 39111508 |
| Warranty | 3-Years |
| Country of Origin | Thailand |
| Bulb Included | Integrated |
| CA Prop 65 | Lead |
| CA Web Text | Lawful for sale |
| CA Regulations | California T24 2016 - 2025 JA8 Listed |
| Title 20 | Exempt |
| T24 Compliant | Yes |
| Diameter In. | 4.7 |
| Dimension String | L:5.63" W:1.30" H:7.13" DIA:4.70" |
| ENERGY STAR | No |
| Finish | White |
| Fixture shape | Round |
| Indoor Outdoor | Indoor |
| IP Rating | IP20 |
| Material | Aluminum |
| Operating Temp | -20C (-4F) to +40C (+104F) |
| Safety Listing | cETLus |
| Location Rating | Dry |
| SDS class | LED_Fixture |
| Technology | LED |
| Volts | 120V |
| Voltage Text | AC Only |
| Watts | 12W |
| Length In. | 5.63 |
| Width In. | 1.3 |
| Height In. | 7.13 |
| Weight Lb. | 0.9 |
| Each UPC | 045923412622 |
| Each Quantity | 1 |
| Each Length In. | 7.87 |
| Each Width In. | 5.4 |
| Each Height In. | 1.73 |
| Each Weight Lb. | 0.92 |
| Each Cubic Ft. | 0.0425 |
| Pack Type | Kraft Box |
| Quantity In Pack | 1 |
| Case UPC | 10045923412629 |
| Case Quantity | 12 |
| Case Length In. | 11.61 |
| Case Width In. | 11.2 |
| Case Height In. | 8.66 |
| Case Weight Lb. | 12.05 |
| Case Cubic Ft. | 0.6517 |
| Specifications | https://www.satco.com/catalog/product/specsheets/JH5070 |
| Instructions | https://assets.satco.com/media-prod/image/upload/Certs/JH5070_Instructions.pdf |
| Drawing | https://assets.satco.com/media-prod/image/upload/Certs/JH5070_Dimensional_Diagram.pdf |
| Collection | Orb |
| ANSI Base | Integrated |
| Beam Spread | 24 |
| CCT Selectable | Yes |
| Closet Rated | No |
| Color Temp | Soft White to Natural Light |
| Connection | Connector or Adapter |
| CRI | 90 |
| Dark Sky Rated | No |
| Dimmable | Yes-Dimmable |
| Dimmable Function | Forward Phase; Linear Dimming |
| FCC Compliant | Yes |
| Finish Family | White |
| Product Type | Track Head |
| Has Emergency Battery | No |
| Avg Rated Hours | 50000 |
| Incandescent Equiv | 75W |
| Lamp Base | Integrated |
| Lamp Shape | Integrated LED |
| Lens Material | Poly methyl methacrylate (PMMA) |
| Lumens | 1020L |
| NSF Approved | No |
| Operating Frequency | 60Hz |
| Power Factor | 0.9 |
| Replaceable Light Source | No |
| RoHS Compliant | Yes |
| Sloped Ceiling Compatible | Yes |
| Style | Contemporary |
| Surge Protection | Built-in surge protection - 2KV |
| Temperature (CCT) | 3000K/4000K/5000K |
| THD | <40% |
| Track Head Style | Circle |
| Trim Color | White |
| Up Down Installation | Universal |
| Wattage Selectable | No |
| Shipping Tier | 1 |
| bundle | 1 |
